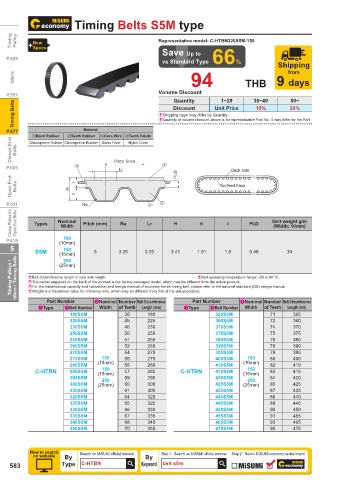

Timing Belts S5M type
Timing Pulley New Representative model: C-HTBN320S5M-150
Specs
Save Up to
P.529
vs Standard Type 66% Shipping
from
Idlers 94 THB 9 days

Volume Discount
P.551 Quantity 1~29 30~49 50~
Timing Belts E Shipping days may differ by Quantity. 15% 30%
Unit Price
Discount
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Material
P.577 1Back Rubber 2Tooth Rubber 3Core Wire 4Tooth Fabric
Closed End Belts Chloroprene Rubber Chloroprene Rubber Glass Fiber Nylon Cloth

P.605 3 Pitch: 5mm 1 PLD Back side
Lr
Open End Belts H i h Toothed Face

P.611 Ra 4 2
Clamp Plates for Open End Belts Types Nominal Pitch (mm) Ra Lr H h i PLD Unit weight g/m

(Width: 10mm)
Width
100
P.615 (10mm)
5 S5M (15mm) 5 3.25 3.25 3.41 1.91 1.5 0.48 34
150
Timing Pulleys / Idlers / Timing Belts EBelt circumference length is core wire length. EBelt operating temperature range: -30 to 90 °C.
250
(25mm)
EThe model engraved on the back of the product is the factory-managed model, which may be different from the actual product.
EFor the transmission capacity and calculation and design method of economy series timing belt, please refer to the national standard (GB) design manual.
EWeight is a theoretical value for reference only, which may be different from that of the actual product.
Part Number 3Nominal Number Belt Circumference Part Number 3Nominal Number Belt Circumference
1Type 2Belt Number Width of Teeth Length (mm) 1Type 2Belt Number Width of Teeth Length (mm)
180S5M 36 180 355S5M 71 355
225S5M 45 225 360S5M 72 360
230S5M 46 230 370S5M 74 370
250S5M 50 250 375S5M 75 375
255S5M 51 255 380S5M 76 380
260S5M 52 260 390S5M 78 390
270S5M 54 270 395S5M 79 395
275S5M 100 55 275 400S5M 100 80 400
280S5M (10mm) 56 280 410S5M (10mm) 82 410
150
150
C-HTBN 285S5M (15mm) 57 285 C-HTBN 415S5M (15mm) 83 415
295S5M 250 59 295 420S5M 250 84 420
300S5M (25mm) 60 300 425S5M (25mm) 85 425
305S5M 61 305 435S5M 87 435
320S5M 64 320 440S5M 88 440
325S5M 65 325 445S5M 89 445
330S5M 66 330 450S5M 90 450
335S5M 67 335 455S5M 91 455
340S5M 68 340 465S5M 93 465
350S5M 70 350 475S5M 95 475

How to search Search on MISUMI official website Step 1 Search on MISUMI official website Step 2 Select MISUMI economy series brand
on website By By
583 Type C-HTBN Keyword belt s5m

110310459629
