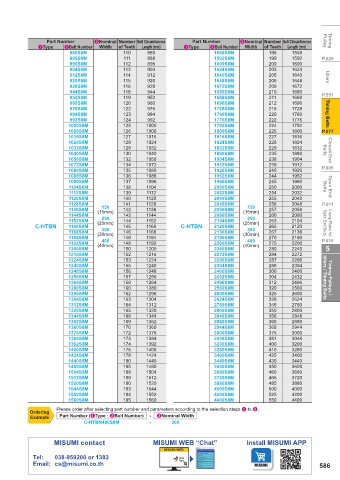

Part Number 3Nominal Number Belt Circumference Part Number 3Nominal Number Belt Circumference Pulley Timing
1Type 2Belt Number Width of Teeth Length (mm) 1Type 2Belt Number Width of Teeth Length (mm)
880S8M 110 880 1568S8M 196 1568
888S8M 111 888 1592S8M 199 1592 P.529
896S8M 112 896 1600S8M 200 1600
904S8M 113 904 1624S8M 203 1624
912S8M 114 912 1640S8M 205 1640 Idlers
920S8M 115 920 1648S8M 206 1648
928S8M 116 928 1672S8M 209 1672
944S8M 118 944 1680S8M 210 1680
952S8M 119 952 1688S8M 211 1688 P.551
960S8M 120 960 1696S8M 212 1696
976S8M 122 976 1728S8M 216 1728
984S8M 123 984 1760S8M 220 1760 Timing Belts
992S8M 124 992 1776S8M 222 1776
1000S8M 125 1000 1792S8M 224 1792
1008S8M 126 1008 1800S8M 225 1800 P.577
1016S8M 127 1016 1816S8M 227 1816
1024S8M 128 1024 1824S8M 228 1824
1032S8M 129 1032 1832S8M 229 1832
1040S8M 130 1040 1880S8M 235 1880 Belts Closed End
1056S8M 132 1056 1904S8M 238 1904
1072S8M 134 1072 1912S8M 239 1912 P.605
1080S8M 135 1080 1920S8M 240 1920
1088S8M 136 1088 1952S8M 244 1952
1096S8M 137 1096 1960S8M 245 1960
1104S8M 138 1104 2000S8M 250 2000 Belts Open End
1112S8M 139 1112 2032S8M 254 2032
1120S8M 140 1120 2040S8M 255 2040
1128S8M 141 1128 2048S8M 256 2048 P.611
150
150
1136S8M (15mm) 142 1136 2056S8M (15mm) 257 2056
1144S8M 143 1144 2080S8M 260 2080
250
250
1152S8M (25mm) 144 1152 2104S8M (25mm) 263 2104
C-HTBN 1160S8M 145 1160 C-HTBN 2120S8M 265 2120 Open End Belts Clamp Plates for
300
300
1168S8M (30mm) 146 1168 2136S8M (30mm) 267 2136
1184S8M 148 1184 2160S8M 270 2160
400
400
1192S8M (40mm) 149 1192 2200S8M (40mm) 275 2200 P.615
1200S8M 150 1200 2240S8M 280 2240 5
1216S8M 152 1216 2272S8M 284 2272
1224S8M 153 1224 2296S8M 287 2296
1240S8M 155 1240 2304S8M 288 2304
1248S8M 156 1248 2400S8M 300 2400
1256S8M 157 1256 2432S8M 304 2432 Idlers / Timing Belts Timing Pulleys /
1264S8M 158 1264 2496S8M 312 2496
1280S8M 160 1280 2560S8M 320 2560
1296S8M 162 1296 2600S8M 325 2600
1304S8M 163 1304 2624S8M 328 2624
1312S8M 164 1312 2760S8M 345 2760
1320S8M 165 1320 2800S8M 350 2800
1344S8M 168 1344 2848S8M 356 2848
1352S8M 169 1352 2880S8M 360 2880
1360S8M 170 1360 2944S8M 368 2944
1376S8M 172 1376 3000S8M 375 3000
1384S8M 173 1384 3048S8M 381 3048
1392S8M 174 1392 3200S8M 400 3200
1400S8M 175 1400 3280S8M 410 3280
1424S8M 178 1424 3400S8M 425 3400
1440S8M 180 1440 3440S8M 430 3440
1480S8M 185 1480 3600S8M 450 3600
1504S8M 188 1504 3680S8M 460 3680
1512S8M 189 1512 3720S8M 465 3720
1520S8M 190 1520 3880S8M 485 3880
1544S8M 193 1544 4000S8M 500 4000
1552S8M 194 1552 4200S8M 525 4200
1560S8M 195 1560 4400S8M 550 4400
Please order after selecting part number and parameters according to the selection steps 1 to 3.
Ordering
Example Part Number (1Type · 2Belt Number) - 3Nominal Width
C-HTBN480S8M - 300
