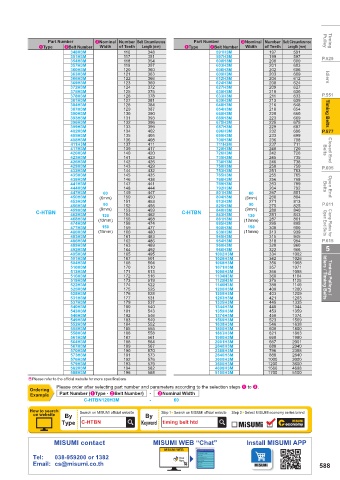

Part Number 3Nominal Number Belt Circumference Part Number 3Nominal Number Belt Circumference Pulley Timing
1Type 2Belt Number Width of Teeth Length (mm) 1Type 2Belt Number Width of Teeth Length (mm)
348H3M 116 348 591H3M 197 591
351H3M 117 351 597H3M 199 597 P.529
354H3M 118 354 600H3M 200 600
357H3M 119 357 603H3M 201 603
360H3M 120 360 606H3M 202 606
363H3M 121 363 609H3M 203 609
366H3M 122 366 612H3M 204 612 Idlers
369H3M 123 369 624H3M 208 624
372H3M 124 372 627H3M 209 627
375H3M 125 375 630H3M 210 630
378H3M 126 378 633H3M 211 633 P.551
381H3M 127 381 639H3M 213 639
384H3M 128 384 648H3M 216 648
387H3M 129 387 654H3M 218 654
390H3M 130 390 660H3M 220 660 Timing Belts
393H3M 131 393 669H3M 223 669
396H3M 132 396 675H3M 225 675
399H3M 133 399 687H3M 229 687
402H3M 134 402 696H3M 232 696 P.577
405H3M 135 405 699H3M 233 699
408H3M 136 408 708H3M 236 708
411H3M 137 411 711H3M 237 711
417H3M 139 417 720H3M 240 720
420H3M 140 420 726H3M 242 726 Belts Closed End
423H3M 141 423 735H3M 245 735
426H3M 142 426 738H3M 246 738
429H3M 143 429 750H3M 250 750 P.605
432H3M 144 432 753H3M 251 753
435H3M 145 435 765H3M 255 765
438H3M 146 438 768H3M 256 768
441H3M 147 441 789H3M 263 789
444H3M 148 444 792H3M 264 792 Belts Open End
447H3M 60 149 447 801H3M 60 267 801
450H3M (6mm) 150 450 804H3M (6mm) 268 804
453H3M 151 453 813H3M 271 813
456H3M 90 152 456 825H3M 90 275 825 P.611
C-HTBN 459H3M (9mm) 153 459 C-HTBN 840H3M (9mm) 280 840
154
281
843
462H3M
462
843H3M
120
120
468H3M (12mm) 156 468 861H3M (12mm) 287 861
474H3M 158 474 885H3M 295 885 Open End Belts Clamp Plates for
477H3M 150 159 477 900H3M 150 300 900
480H3M (15mm) 160 480 939H3M (15mm) 313 939
483H3M 161 483 945H3M 315 945
486H3M 162 486 954H3M 318 954 P.615
489H3M 163 489 960H3M 320 960
492H3M 164 492 966H3M 322 966 5
495H3M 165 495 1002H3M 334 1002
501H3M 167 501 1026H3M 342 1026
504H3M 168 504 1068H3M 356 1068
510H3M 170 510 1071H3M 357 1071
513H3M 171 513 1098H3M 366 1098
516H3M 172 516 1104H3M 368 1104 Idlers / Timing Belts
519H3M 173 519 1125H3M 375 1125 Timing Pulleys /
522H3M 174 522 1140H3M 380 1140
525H3M 175 525 1200H3M 400 1200
528H3M 176 528 1209H3M 403 1209
531H3M 177 531 1263H3M 421 1263
537H3M 179 537 1335H3M 445 1335
540H3M 180 540 1344H3M 448 1344
543H3M 181 543 1359H3M 453 1359
546H3M 182 546 1374H3M 458 1374
549H3M 183 549 1569H3M 523 1569
552H3M 184 552 1638H3M 546 1638
555H3M 185 555 1800H3M 600 1800
558H3M 186 558 1863H3M 621 1863
561H3M 187 561 1980H3M 660 1980
564H3M 188 564 2001H3M 667 2001
567H3M 189 567 2040H3M 680 2040
570H3M 190 570 2388H3M 796 2388
573H3M 191 573 2640H3M 880 2640
576H3M 192 576 3000H3M 1000 3000
579H3M 193 579 3600H3M 1200 3600
582H3M 194 582 4698H3M 1566 4698
588H3M 196 588 5100H3M 1700 5100
EPlease refer to the official website for more specifications
Please order after selecting part number and parameters according to the selection steps 1 to 3.
Ordering
Example Part Number (1Type · 2Belt Number) - 3Nominal Width
C-HTBN120H3M - 60
How to search Search on MISUMI official website Step 1 Search on MISUMI official website Step 2 Select MISUMI economy series brand
on website By By
Type C-HTBN Keyword timing belt htd
