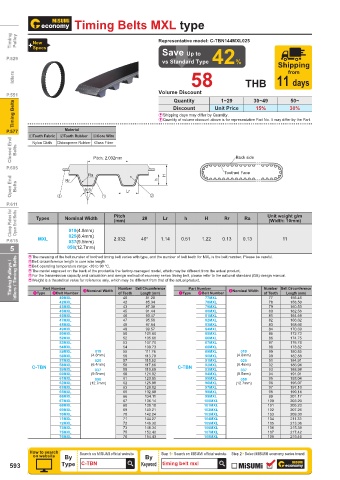

Timing Belts MXL type
Timing Pulley New Representative model: C-TBN144MXL025
Specs
Save Up to
P.529
vs Standard Type 42% Shipping
from
Idlers 58 THB 11 days

Volume Discount
P.551 Quantity 1~29 30~49 50~
Timing Belts E Shipping days may differ by Quantity. 15% 30%
Discount
Unit Price
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Material
P.577 1Tooth Fabric 2Tooth Rubber 3Core Wire
Closed End Belts Nylon Cloth Chloroprene Rubber Glass Fiber Back side

Pitch: 2.032mm
P.605 Ra H Toothed Face
Open End Belts Rr θ θ Lr h

P.611 3 1 2
Clamp Plates for Open End Belts Types Nominal Width Pitch 2θ Lr h H Rr Ra Unit weight g/m
(mm)
(Width: 10mm)
019(4.8mm)
P.615 MXL 025(6.4mm) 2.032 40° 1.14 0.51 1.22 0.13 0.13 11
037(9.5mm)
5 E The meaning of the belt number of toothed timing belt varies with type, and the number of belt teeth for MXL is the belt number. Please be careful.
050(12.7mm)
Timing Pulleys / Idlers / Timing Belts EBelt operating temperature range: -30 to 90 °C. Number Belt Circumference Part Number Number Belt Circumference
EBelt circumference length is core wire length.
E The model engraved on the back of the product is the factory-managed model, which may be different from the actual product.
E For the transmission capacity and calculation and design method of economy series timing belt, please refer to the national standard (GB) design manual.
E Weight is a theoretical value for reference only, which may be different from that of the actual product.
Part Number
2Belt Number
1Type
40MXL
77MXL
81.28
77
156.46
40
78MXL
85.34
158.50
42MXL 3Nominal Width of Teeth Length (mm) 1Type 2Belt Number 3Nominal Width of Teeth Length (mm)
78
42
43MXL 43 87.38 79MXL 79 160.53
45MXL 45 91.44 80MXL 80 162.56
46MXL 46 93.47 81MXL 81 164.59
47MXL 47 95.50 82MXL 82 166.62
48MXL 48 97.54 83MXL 83 168.66
49MXL 49 99.57 84MXL 84 170.69
50MXL 50 101.60 85MXL 85 172.72
52MXL 52 105.66 86MXL 86 174.75
53MXL 53 107.70 87MXL 87 176.78
54MXL 54 109.73 88MXL 88 178.82
55MXL 019 55 111.76 89MXL 019 89 180.85
56MXL (4.8mm) 56 113.79 90MXL (4.8mm) 90 182.88
57MXL 025 57 115.82 91MXL 025 91 184.91
C-TBN 58MXL (6.4mm) 58 117.86 C-TBN 92MXL (6.4mm) 92 186.94
93
93MXL
59MXL
188.98
119.89
59
037
037
60MXL (9.5mm) 60 121.92 94MXL (9.5mm) 94 191.01
61MXL 050 61 123.95 95MXL 050 95 193.04
62MXL (12.7mm) 62 125.98 96MXL (12.7mm) 96 195.07
63MXL 63 128.02 97MXL 97 197.10
65MXL 65 132.08 98MXL 98 199.14
66MXL 66 134.11 99MXL 99 201.17
67MXL 67 136.14 100MXL 100 203.20
68MXL 68 138.18 101MXL 101 205.23
69MXL 69 140.21 102MXL 102 207.26
70MXL 70 142.24 103MXL 103 209.30
71MXL 71 144.27 104MXL 104 211.33
72MXL 72 146.30 105MXL 105 213.36
73MXL 73 148.34 106MXL 106 215.39
75MXL 75 152.40 107MXL 107 217.42
76MXL 76 154.43 108MXL 108 219.46
