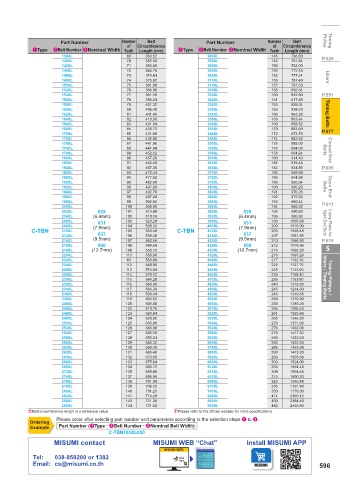

Part Number Number Belt Part Number Number Belt Pulley Timing
of
of
1Type 2Belt Number 3Nominal Width Teeth Circumference 1Type 2Belt Number 3Nominal Width Teeth Circumference
Length (mm)
Length (mm)
138XL 69 350.52 290XL 145 736.60 P.529
140XL 70 355.60 296XL 148 751.84
142XL 71 360.68 300XL 150 762.00
144XL 72 365.76 304XL 152 772.16
146XL 73 370.84 306XL 153 777.24 Idlers
148XL 74 375.92 310XL 155 787.40
150XL 75 381.00 314XL 157 797.56
152XL 76 386.08 316XL 158 802.64
154XL 77 391.16 320XL 160 812.80 P.551
156XL 78 396.24 322XL 161 817.88
158XL 79 401.32 326XL 163 828.04
160XL 80 406.40 330XL 165 838.20
162XL 81 411.48 332XL 166 843.28 Timing Belts
164XL 82 416.56 336XL 168 853.44
166XL 83 421.64 338XL 169 858.52
168XL 84 426.72 340XL 170 863.60
170XL 85 431.80 344XL 172 873.76 P.577
172XL 86 436.88 348XL 174 883.92
174XL 87 441.96 350XL 175 889.00
176XL 88 447.04 352XL 176 894.08
178XL 89 452.12 356XL 178 904.24 Belts Closed End
180XL 90 457.20 360XL 180 914.40
182XL 91 462.28 362XL 181 919.48
184XL 92 467.36 364XL 182 924.56 P.605
186XL 93 472.44 370XL 185 939.80
188XL 94 477.52 372XL 186 944.88
190XL 95 482.60 376XL 188 955.04
192XL 96 487.68 380XL 190 965.20 Belts Open End
194XL 97 492.76 382XL 191 970.28
196XL 98 497.84 384XL 192 975.36
198XL 99 502.92 386XL 193 980.44
200XL 100 508.00 388XL 194 985.52 P.611
202XL 025 101 513.08 390XL 025 195 990.60
204XL (6.4mm) 102 518.16 392XL (6.4mm) 196 995.68
206XL 031 103 523.24 396XL 031 198 1005.84 Open End Belts Clamp Plates for
208XL (7.9mm) 104 528.32 400XL (7.9mm) 200 1016.00
C-TBN 210XL 105 533.40 C-TBN 412XL 206 1046.48
212XL 037 106 538.48 414XL 037 207 1051.56
214XL (9.5mm) 107 543.56 420XL (9.5mm) 210 1066.80 P.615
216XL 050 108 548.64 424XL 050 212 1076.96
218XL (12.7mm) 109 553.72 430XL (12.7mm) 215 1092.20 5
220XL 110 558.80 432XL 216 1097.28
222XL 111 563.88 434XL 217 1102.36
224XL 112 568.96 444XL 222 1127.76
226XL 113 574.04 450XL 225 1143.00
228XL 114 579.12 460XL 230 1168.40
230XL 115 584.20 470XL 235 1193.80 Idlers / Timing Belts Timing Pulleys /
232XL 116 589.28 480XL 240 1219.20
234XL 117 594.36 490XL 245 1244.60
236XL 118 599.44 492XL 246 1249.68
238XL 119 604.52 500XL 250 1270.00
240XL 120 609.60 506XL 253 1285.24
244XL 122 619.76 510XL 255 1295.40
246XL 123 624.84 522XL 261 1325.88
248XL 124 629.92 530XL 265 1346.20
250XL 125 635.00 540XL 270 1371.60
252XL 126 640.08 552XL 276 1402.08
254XL 127 645.16 558XL 279 1417.32
256XL 128 650.24 560XL 280 1422.40
258XL 129 655.32 564XL 282 1432.56
260XL 130 660.40 576XL 288 1463.04
262XL 131 665.48 580XL 290 1473.20
264XL 132 670.56 592XL 296 1503.68
266XL 133 675.64 600XL 300 1524.00
268XL 134 680.72 612XL 306 1554.48
270XL 135 685.80 616XL 308 1564.64
274XL 137 695.96 630XL 315 1600.20
276XL 138 701.04 646XL 323 1640.84
278XL 139 706.12 670XL 335 1701.80
280XL 140 711.20 700XL 350 1778.00
282XL 141 716.28 828XL 414 2103.12
284XL 142 721.36 860XL 430 2184.40
288XL 144 731.52 964XL 482 2448.56
EBelt circumference length is a reference value. EPlease refer to the official website for more specifications
Please order after selecting part number and parameters according to the selection steps 1 to 3.
Ordering
Example Part Number (1Type · 2Belt Number · 3Nominal Belt Width)
C-TBN100XL050
