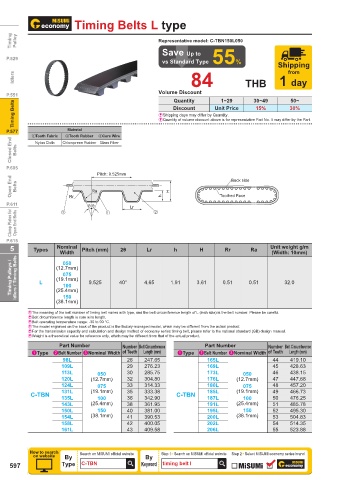

Timing Belts L type
Timing Pulley Representative model: C-TBN150L050
Save Up to
P.529
vs Standard Type 55% Shipping
from
Idlers 84 THB 1 day

Volume Discount
P.551 Quantity 1~29 30~49 50~
Timing Belts E Shipping days may differ by Quantity. 15% 30%
Discount
Unit Price
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Material
P.577 1Tooth Fabric 2Tooth Rubber 3Core Wire
Closed End Belts Nylon Cloth Chloroprene Rubber Glass Fiber

P.605
Pitch: 9.525mm Back side
Open End Belts Ra H

P.611 3 Rr θ θ 1 Lr 2 h Toothed Face
Clamp Plates for Open End Belts

P.615
5 Types Nominal Pitch (mm) 2θ Lr h H Rr Ra Unit weight g/m
Width (Width: 10mm)
Timing Pulleys / Idlers / Timing Belts L (12.7mm) 9.525 40° 4.65 1.91 3.61 0.51 0.51 32.0
050
075
(19.1mm)
100
(25.4mm)
150
(38.1mm)
EThe meaning of the belt number of timing belt varies with type, and the belt circumference length of L (inch size) is the belt number. Please be careful.
EBelt circumference length is core wire length.
EBelt operating temperature range: -30 to 90 °C.
EThe model engraved on the back of the product is the factory-managed model, which may be different from the actual product.
EFor the transmission capacity and calculation and design method of economy series timing belt, please refer to the national standard (GB) design manual.
EWeight is a theoretical value for reference only, which may be different from that of the actual product.
Part Number Number Belt Circumference Part Number Number Belt Circumference
1Type 2Belt Number 3Nominal Width of Teeth Length (mm) 1Type 2Belt Number 3Nominal Width of Teeth Length (mm)
98L 26 247.65 165L 44 419.10
109L 29 276.23 169L 45 428.63
113L 050 30 285.75 173L 050 46 438.15
120L (12.7mm) 32 304.80 176L (12.7mm) 47 447.68
124L 075 33 314.33 180L 075 48 457.20
C-TBN 131L (19.1mm) 35 333.38 C-TBN 185L (19.1mm) 49 466.73
187L
135L
476.25
50
342.90
36
100
100
143L (25.4mm) 38 361.95 191L (25.4mm) 51 485.78
150L 150 40 381.00 195L 150 52 495.30
154L (38.1mm) 41 390.53 200L (38.1mm) 53 504.83
158L 42 400.05 202L 54 514.35
161L 43 409.58 206L 55 523.88
How to search Search on MISUMI official website Step 1 Search on MISUMI official website Step 2 Select MISUMI economy series brand
on website By By
597 Type C-TBN Keyword timing belt l
