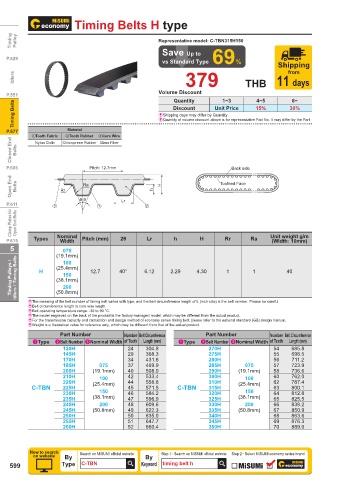

Timing Belts H type
Timing Pulley Representative model: C-TBN315H150
Save Up to
P.529
vs Standard Type 69% Shipping
from
Idlers 379 THB 11 days

Volume Discount
P.551 Quantity 1~3 4~5 6~
Timing Belts E Shipping days may differ by Quantity. 15% 30%
Discount
Unit Price
E Quantity of volume discount above is for representative Part No. It may differ by the Part.
Material
P.577 1Tooth Fabric 2Tooth Rubber 3Core Wire
Closed End Belts Nylon Cloth Chloroprene Rubber Glass Fiber

P.605 Pitch: 12.7mm Back side
Open End Belts Rr Ra h H Toothed Face

θ θ Lr
P.611 3 1 2
Clamp Plates for Open End Belts

(Width: 10mm)
P.615 Types Nominal Pitch (mm) 2θ Lr h H Rr Ra Unit weight g/m
Width
5 075
(19.1mm)
Timing Pulleys / Idlers / Timing Belts H (25.4mm) 12.7 40° 6.12 2.29 4.30 1 1 40
100
150
(38.1mm)
200
(50.8mm)
EThe meaning of the belt number of timing belt varies with type, and the belt circumference length of L (inch size) is the belt number. Please be careful.
EBelt circumference length is core wire length.
EBelt operating temperature range: -30 to 90 °C.
EThe model engraved on the back of the product is the factory-managed model, which may be different from the actual product.
EFor the transmission capacity and calculation and design method of economy series timing belt, please refer to the national standard (GB) design manual.
EWeight is a theoretical value for reference only, which may be different from that of the actual product.
Part Number Number Belt Circumference Part Number Number Belt Circumference
1Type 2Belt Number 3Nominal Width of Teeth Length (mm) 1Type 2Belt Number 3Nominal Width of Teeth Length (mm)
120H 24 304.8 270H 54 685.8
145H 29 368.3 275H 55 698.5
170H 34 431.8 280H 56 711.2
185H 075 37 469.9 285H 075 57 723.9
200H (19.1mm) 40 508.0 290H (19.1mm) 58 736.6
210H 100 42 533.4 300H 100 60 762.0
220H (25.4mm) 44 558.8 310H (25.4mm) 62 787.4
C-TBN 225H 45 571.5 C-TBN 315H 63 800.1
230H 150 46 584.2 320H 150 64 812.8
235H (38.1mm) 47 596.9 325H (38.1mm) 65 825.5
240H 200 48 609.6 330H 200 66 838.2
245H (50.8mm) 49 622.3 335H (50.8mm) 67 850.9
250H 50 635.0 340H 68 863.6
255H 51 647.7 345H 69 876.3
260H 52 660.4 350H 70 889.0

How to search Search on MISUMI official website Step 1 Search on MISUMI official website Step 2 Select MISUMI economy series brand
on website By By
599 Type C-TBN Keyword timing belt h
