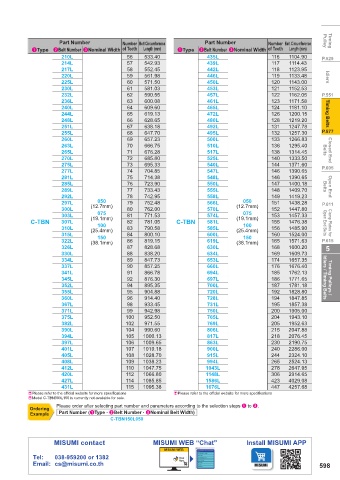

Part Number Number Belt Circumference Part Number Number Belt Circumference Pulley Timing
1Type 2Belt Number 3Nominal Width of Teeth Length (mm) 1Type 2Belt Number 3Nominal Width of Teeth Length (mm)
210L 56 533.40 435L 116 1104.90 P.529
214L 57 542.93 439L 117 1114.43
217L 58 552.45 442L 118 1123.95
220L 59 561.98 446L 119 1133.48 Idlers
225L 60 571.50 450L 120 1143.00
230L 61 581.03 453L 121 1152.53
232L 62 590.55 457L 122 1162.05 P.551
236L 63 600.08 461L 123 1171.58
240L 64 609.60 465L 124 1181.10
244L 65 619.13 472L 126 1200.15 Timing Belts
248L 66 628.65 480L 128 1219.20
251L 67 638.18 492L 131 1247.78
255L 68 647.70 495L 132 1257.30 P.577
260L 69 657.23 500L 133 1266.83
263L 70 666.75 510L 136 1295.40
265L 71 676.28 517L 138 1314.45 Belts Closed End
270L 72 685.80 525L 140 1333.50
275L 73 695.33 540L 144 1371.60 P.605
277L 74 704.85 547L 146 1390.65
281L 75 714.38 548L 146 1390.65
285L 76 723.90 550L 147 1400.18
289L 77 733.43 555L 148 1409.70 Belts Open End
292L 78 742.95 558L 149 1419.23
297L 050 79 752.48 566L 050 151 1438.28 P.611
300L (12.7mm) 80 762.00 570L (12.7mm) 152 1447.80
303L 075 81 771.53 574L 075 153 1457.33
C-TBN 307L (19.1mm) 82 781.05 C-TBN 581L (19.1mm) 155 1476.38 Open End Belts Clamp Plates for
100
100
310L (25.4mm) 83 790.58 585L (25.4mm) 156 1485.90
315L 150 84 800.10 600L 150 160 1524.00
322L (38.1mm) 86 819.15 619L (38.1mm) 165 1571.63 P.615
326L 87 828.68 630L 168 1600.20 5
330L 88 838.20 634L 169 1609.73
334L 89 847.73 653L 174 1657.35
337L 90 857.25 660L 176 1676.40
341L 91 866.78 694L 185 1762.13
345L 92 876.30 697L 186 1771.65 Idlers / Timing Belts Timing Pulleys /
352L 94 895.35 700L 187 1781.18
355L 95 904.88 720L 192 1828.80
360L 96 914.40 728L 194 1847.85
367L 98 933.45 731L 195 1857.38
371L 99 942.98 750L 200 1905.00
375L 100 952.50 765L 204 1943.10
382L 102 971.55 769L 205 1952.63
390L 104 990.60 806L 215 2047.88
394L 105 1000.13 817L 218 2076.45
397L 106 1009.65 863L 230 2190.75
401L 107 1019.18 900L 240 2286.00
405L 108 1028.70 915L 244 2324.10
408L 109 1038.23 994L 265 2524.13
412L 110 1047.75 1043L 278 2647.95
420L 112 1066.80 1148L 306 2914.65
427L 114 1085.85 1586L 423 4029.08
431L 115 1095.38 1676L 447 4257.68
EPlease refer to the official website for more specifications EPlease refer to the official website for more specifications
EModel C-TBN303L150 is currently not available for sale.
Please order after selecting part number and parameters according to the selection steps 1 to 3.
Ordering
Example Part Number (1Type · 2Belt Number · 3Nominal Belt Width)
C-TBN150L050
