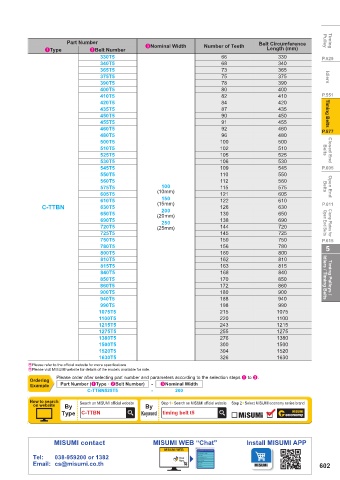

Part Number Belt Circumference Pulley Timing
1Type 2Belt Number 3Nominal Width Number of Teeth Length (mm)
330T5 66 330 P.529
340T5 68 340
365T5 73 365
375T5 75 375 Idlers
390T5 78 390
400T5 80 400
410T5 82 410 P.551
420T5 84 420
435T5 87 435
450T5 90 450 Timing Belts
455T5 91 455
460T5 92 460 P.577
480T5 96 480
500T5 100 500
510T5 102 510 Belts
525T5 105 525 Closed End
530T5 106 530
545T5 109 545 P.605
550T5 110 550
560T5 112 560
575T5 100 115 575 Belts Open End
605T5 (10mm) 121 605
610T5 150 122 610
C-TTBN 630T5 (15mm) 126 630 P.611
200
650T5 (20mm) 130 650
690T5 250 138 690
720T5 (25mm) 144 720 Open End Belts Clamp Plates for
725T5 145 725
750T5 150 750 P.615
780T5 156 780 5
800T5 160 800
810T5 162 810
815T5 163 815
840T5 168 840
850T5 170 850 Idlers / Timing Belts Timing Pulleys /
860T5 172 860
900T5 180 900
940T5 188 940
990T5 198 990
1075T5 215 1075
1100T5 220 1100
1215T5 243 1215
1275T5 255 1275
1380T5 276 1380
1500T5 300 1500
1520T5 304 1520
1630T5 326 1630
EPlease refer to the official website for more specifications
EPlease visit MISUMI website for details of the models available for sale.
Please order after selecting part number and parameters according to the selection steps 1 to 3.
Ordering
Example Part Number (1Type · 2Belt Number) - 3Nominal Width
C-TTBN525T5 - 200
How to search Search on MISUMI official website Step 1 Search on MISUMI official website Step 2 Select MISUMI economy series brand
on website By By
Type C-TTBN Keyword timing belt t5
