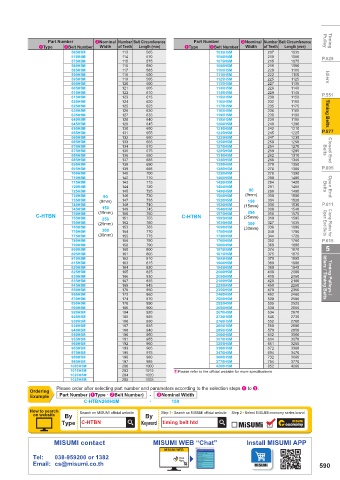

Part Number 3Nominal Number Belt Circumference Part Number 3Nominal Number Belt Circumference Pulley Timing
1Type 2Belt Number Width of Teeth Length (mm) 1Type 2Belt Number Width of Teeth Length (mm)
565H5M 113 565 1035H5M 207 1035
570H5M 114 570 1050H5M 210 1050 P.529
575H5M 115 575 1075H5M 215 1075
580H5M 116 580 1080H5M 216 1080
585H5M 117 585 1100H5M 220 1100
590H5M 118 590 1110H5M 222 1110
595H5M 119 595 1125H5M 225 1125 Idlers
600H5M 120 600 1135H5M 227 1135
605H5M 121 605 1140H5M 228 1140
610H5M 122 610 1145H5M 229 1145
615H5M 123 615 1150H5M 230 1150 P.551
620H5M 124 620 1160H5M 232 1160
625H5M 125 625 1175H5M 235 1175
630H5M 126 630 1180H5M 236 1180
635H5M 127 635 1190H5M 238 1190 Timing Belts
640H5M 128 640 1195H5M 239 1195
645H5M 129 645 1200H5M 240 1200
650H5M 130 650 1210H5M 242 1210
655H5M 131 655 1225H5M 245 1225 P.577
660H5M 132 660 1235H5M 247 1235
665H5M 133 665 1250H5M 250 1250
670H5M 134 670 1270H5M 254 1270
675H5M 135 675 1295H5M 259 1295 Belts Closed End
680H5M 136 680 1310H5M 262 1310
685H5M 137 685 1340H5M 268 1340
690H5M 138 690 1350H5M 270 1350
695H5M 139 695 1380H5M 276 1380 P.605
700H5M 140 700 1390H5M 278 1390
710H5M 142 710 1400H5M 280 1400
715H5M 143 715 1420H5M 284 1420
720H5M 144 720 1455H5M 291 1455 Belts Open End
725H5M 145 725 1490H5M 90 298 1490
730H5M 90 146 730 1500H5M (9mm) 300 1500
735H5M (9mm) 147 735 1520H5M 150 304 1520
740H5M 148 740 1530H5M (15mm) 306 1530 P.611
745H5M 150 149 745 1540H5M 308 1540
250
C-HTBN 750H5M (15mm) 150 750 C-HTBN 1575H5M (25mm) 315 1575
755
1595
755H5M
151
1595H5M
319
250
760H5M (25mm) 152 760 1635H5M 300 327 1635 Open End Belts Clamp Plates for
765H5M 153 765 1690H5M (30mm) 338 1690
770H5M 300 154 770 1700H5M 340 1700
775H5M (30mm) 155 775 1720H5M 344 1720
780H5M 156 780 1760H5M 352 1760 P.615
790H5M 158 790 1800H5M 360 1800
800H5M 160 800 1870H5M 374 1870 5
805H5M 161 805 1875H5M 375 1875
810H5M 162 810 1895H5M 379 1895
815H5M 163 815 1900H5M 380 1900
820H5M 164 820 1945H5M 389 1945
825H5M 165 825 2000H5M 400 2000
830H5M 166 830 2050H5M 410 2050 Idlers / Timing Belts
835H5M 167 835 2100H5M 420 2100 Timing Pulleys /
845H5M 169 845 2250H5M 450 2250
850H5M 170 850 2350H5M 470 2350
860H5M 172 860 2460H5M 492 2460
870H5M 174 870 2500H5M 500 2500
890H5M 178 890 2525H5M 505 2525
900H5M 180 900 2650H5M 530 2650
920H5M 184 920 2670H5M 534 2670
925H5M 185 925 2730H5M 546 2730
930H5M 186 930 2760H5M 552 2760
935H5M 187 935 2800H5M 560 2800
940H5M 188 940 2850H5M 570 2850
950H5M 190 950 3060H5M 612 3060
955H5M 191 955 3070H5M 614 3070
960H5M 192 960 3255H5M 651 3255
965H5M 193 965 3360H5M 672 3360
975H5M 195 975 3470H5M 694 3470
980H5M 196 980 3660H5M 732 3660
985H5M 197 985 3770H5M 754 3770
1000H5M 200 1000 4260H5M 852 4260
1015H5M 203 1015 EPlease refer to the official website for more specifications
1020H5M 204 1020
1025H5M 205 1025
Please order after selecting part number and parameters according to the selection steps 1 to 3.
Ordering
Example Part Number (1Type · 2Belt Number) - 3Nominal Width
C-HTBN260H5M - 150
