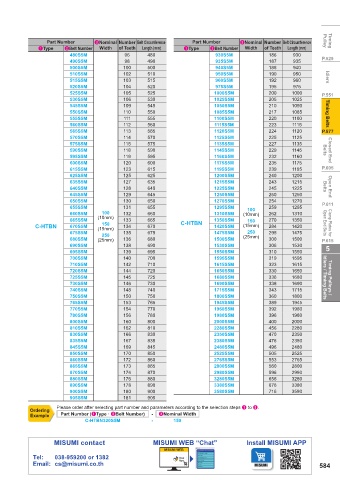

Part Number 3Nominal Number Belt Circumference Part Number 3Nominal Number Belt Circumference Pulley Timing
1Type 2Belt Number Width of Teeth Length (mm) 1Type 2Belt Number Width of Teeth Length (mm)
480S5M 96 480 930S5M 186 930 P.529
490S5M 98 490 935S5M 187 935
500S5M 100 500 940S5M 188 940
510S5M 102 510 950S5M 190 950
515S5M 103 515 960S5M 192 960 Idlers
520S5M 104 520 975S5M 195 975
525S5M 105 525 1000S5M 200 1000 P.551
530S5M 106 530 1025S5M 205 1025
545S5M 109 545 1050S5M 210 1050
550S5M 110 550 1085S5M 217 1085 Timing Belts
555S5M 111 555 1100S5M 220 1100
560S5M 112 560 1115S5M 223 1115
565S5M 113 565 1120S5M 224 1120 P.577
570S5M 114 570 1125S5M 225 1125
575S5M 115 575 1135S5M 227 1135
590S5M 118 590 1145S5M 229 1145 Belts Closed End
595S5M 119 595 1160S5M 232 1160
600S5M 120 600 1175S5M 235 1175
615S5M 123 615 1195S5M 239 1195 P.605
625S5M 125 625 1200S5M 240 1200
635S5M 127 635 1215S5M 243 1215
640S5M 128 640 1225S5M 245 1225 Belts Open End
645S5M 129 645 1250S5M 250 1250
650S5M 130 650 1270S5M 254 1270
655S5M 131 655 1295S5M 100 259 1295 P.611
660S5M 100 132 660 1310S5M (10mm) 262 1310
665S5M (10mm) 133 665 C-HTBN 1350S5M 150 270 1350
150
C-HTBN 670S5M (15mm) 134 670 1420S5M (15mm) 284 1420 Open End Belts Clamp Plates for
675S5M 250 135 675 1475S5M 250 295 1475
680S5M (25mm) 136 680 1500S5M (25mm) 300 1500 P.615
690S5M 138 690 1530S5M 306 1530 5
695S5M 139 695 1550S5M 310 1550
700S5M 140 700 1595S5M 319 1595
710S5M 142 710 1615S5M 323 1615
720S5M 144 720 1650S5M 330 1650
725S5M 145 725 1680S5M 336 1680 Idlers / Timing Belts Timing Pulleys /
730S5M 146 730 1690S5M 338 1690
740S5M 148 740 1715S5M 343 1715
750S5M 150 750 1800S5M 360 1800
765S5M 153 765 1945S5M 389 1945
770S5M 154 770 1960S5M 392 1960
780S5M 156 780 1980S5M 396 1980
800S5M 160 800 2000S5M 400 2000
810S5M 162 810 2280S5M 456 2280
830S5M 166 830 2350S5M 470 2350
835S5M 167 835 2380S5M 476 2380
845S5M 169 845 2480S5M 496 2480
850S5M 170 850 2525S5M 505 2525
860S5M 172 860 2765S5M 553 2765
865S5M 173 865 2800S5M 560 2800
870S5M 174 870 2980S5M 596 2980
880S5M 176 880 3280S5M 656 3280
890S5M 178 890 3380S5M 676 3380
900S5M 180 900 3580S5M 716 3580
905S5M 181 905
Please order after selecting part number and parameters according to the selection steps 1 to 3.
Ordering
Example Part Number (1Type · 2Belt Number) - 3Nominal Width
C-HTBN320S5M - 150
