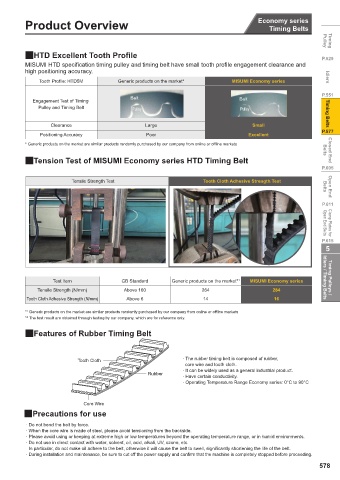

Economy series Product Overview Product Overview Economy series
Timing Belts Timing Belts Pulley Timing
vs Standard Type QHTD Excellent Tooth Profile P.529
Economy series Saving MISUMI HTD specification timing pulley and timing belt have small tooth profile engagement clearance and
high positioning accuracy.
up to
Timing Belts 70 % Tooth Profile: HTD5M Generic products on the market* MISUMI Economy series Idlers

Engagement Test of Timing Belt Belt P.551
Newly Added HTD Circular Tooth Profile Timing Belts Pulley and Timing Belt Pulley Pulley Timing Belts

MISUMI Economy series Timing Belts Clearance Large Small
include: S Tooth Profile, HTD Tooth Profile, Positioning Accuracy Poor Excellent P.577
MXL / XL / L / H Tooth Profile, T Tooth Profile * Generic products on the market are similar products randomly purchased by our company from online or offline markets Belts
QTension Test of MISUMI Economy series HTD Timing Belt Closed End
P.605

Tensile Strength Test Tooth Cloth Adhesive Strength Test
QProduct Overview Belts Open End
Timing pulleys and Timing Belts are widely used to design mechanisms for transmitting rotational power generated by motors.
Driving and transmission are realized through the engagement between the teeth of timing pulleys and timing belts. P.611
Local production in China delivers MISUMI quality at low price.

QProduct Features Open End Belts Clamp Plates for
P.615
Tooth Profile Tooth Shape Types Features Product Features 5
Feature 1: Reasonable semi-circular arc tooth
S2M / S3M profile design can provide higher torque to
adapt to high load transmission.
S5M / S8M High Torque Transmission Feature 2: Tooth peak changes little under
Round Tooth force, improving service life. Test Item GB Standard Generic products on the market* 1 MISUMI Economy series Idlers / Timing Belts Timing Pulleys /
Feature 1: The arc tooth profile has higher
H3M / H5M Positioning Accuracy transmission power than the trapezoidal tooth. Tensile Strength (N/mm) Above 160 264 284
Feature 2: Timing pulley and Timing Belts have
H8M small engagement clearance and high Tooth Cloth Adhesive Strength (N/mm) Above 6 14 16
positioning accuracy.
1
* Generic products on the market are similar products randomly purchased by our company from online or offline markets
MXL / XL / L / H Standard Torque Transmission * 2 The test result are obtained through testing by our company, which are for reference only.
Tooth rubber uses chloroprene to protect core
Trapezoidal Tooth Light Load Transmission· wire, providing excellent bending fatigue QFeatures of Rubber Timing Belt
T5 / T10 Standard Torque Transmission resistance, heat resistance, oil resistance

QExample of Use Tooth Cloth · The rubber timing belt is composed of rubber,
core wire and tooth cloth.
· It can be widely used as a general industrial product.
Instructions for Use of Timing Instructions for Use of Timing Rubber
Usage Method Example Drawing Usage Method Example Drawing · Have certain conductivity.
Pulley and Timing Belt Pulley and Timing Belt
· Operating Temperature Range Economy series: 0°C to 90°C
1Driving (The driven wheel is 3Conveyance (Plates are
driven by the driving wheel for conveyed by two timing Core Wire
transmission) toothed belts)
QPrecautions for use
· Do not bend the belt by force.
2Transmission (Used for repeated 4Traction transmission · When the core wire is made of steel, please avoid tensioning from the backside.
motion with the object not rotating (Workpieces are clamped · Please avoid using or keeping at extreme high or low temperatures beyond the operating temperature range, or in humid environments.
· Do not use in direct contact with water, solvent, oil, acid, alkali, UV, ozone, etc.
and high requirements on and transmitted by the belt) In particular, do not make oil adhere to the belt, otherwise it will cause the belt to swell, significantly shortening the life of the belt.
positioning accuracy) · During installation and maintenance, be sure to cut off the power supply and confirm that the machine is completely stopped before proceeding.
