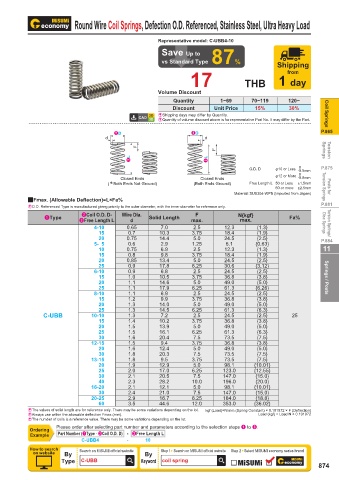

Page 879 - MISUMI Thailand Economy Series

Round Wire Coil Springs, Defection O.D. Referenced, Stainless Steel, Ultra Heavy Load

Representative model: C-UBB4-10
Save Up to
vs Standard Type 87% Shipping
17 THB 1 day
from

Volume Discount
Quantity 1~69 70~119 120~
Discount Unit Price 15% 30%
E Shipping days may differ by Quantity. Coil Springs
E Quantity of volume discount above is for representative Part No. It may differ by the Part.

2D 2D P.865
d d
F
F Springs Tension
3L 3L
O.D. D φ10 or Less 0 P.875
-0.5mm
φ12 or More 0
Closed Ends Closed Ends -0.8mm
( ＊ Both Ends Not Ground) (Both Ends Ground) Free Length L 50 or Less ±1.5mm
60 or more ±2.5mm Tension Springs Posts for
Material: SUS304-WPB (Imported from Japan)
QFmax. (Allowable Deflection)=L×Fa%
E O.D. Referenced Type is manufactured giving priority to the outer diameter, with the inner diameter for reference only. P.881
2Coil O.D. D- Wire Dia. F N{kgf}
1Type 3Free Length L d Solid Length max. max. Fa%
4- 10 0.65 7.0 2.5 12.3 {1.3} Disc Springs Torsion Springs/
15 0.7 10.3 3.75 18.4 {1.9}
20 0.75 14.4 5.0 24.5 {2.5} P.884
5- 5 0.6 2.9 1.25 6.1 {0.63}
10 0.75 6.9 2.5 12.3 {1.3} 11
15 0.8 9.8 3.75 18.4 {1.9}
20 0.85 13.4 5.0 24.5 {2.5}
25 0.9 17.8 6.25 30.6 {3.12}
6-10 0.9 6.8 2.5 24.5 {2.5}
15 1.0 10.5 3.75 36.8 {3.8} Springs / Posts
20 1.1 14.6 5.0 49.0 {5.0}
25 1.1 17.9 6.25 61.3 {6.26}
8- 10 1.1 6.9 2.5 24.5 {2.5}
15 1.2 9.9 3.75 36.8 {3.8}
20 1.3 14.0 5.0 49.0 {5.0}
25 1.3 14.5 6.25 61.3 {6.3}
C-UBB 10-10 1.3 7.2 2.5 24.5 {2.5} 25
15 1.4 10.2 3.75 36.8 {3.8}
20 1.5 13.9 5.0 49.0 {5.0}
25 1.5 16.1 6.25 61.3 {6.3}
30 1.6 20.4 7.5 73.5 {7.5}
12-15 1.5 9.4 3.75 36.8 {3.8}
20 1.6 12.4 5.0 49.0 {5.0}
30 1.8 20.3 7.5 73.5 {7.5}
13-15 1.8 9.5 3.75 73.5 {7.5}
20 1.9 12.9 5.0 98.1 {10.01}
25 2.0 17.0 6.25 123.0 {12.55}
30 2.1 20.5 7.5 147.0 {15.0}
40 2.3 28.2 10.0 196.0 {20.0}
16-20 2.1 12.1 5.0 98.1 {10.01}
30 2.4 21.0 7.5 147.0 {15.0}
20-25 2.9 16.7 6.25 184.0 {18.8}
60 3.5 44.6 12.0 353.0 {36.02}
E The values of solid length are for reference only. There may be some variations depending on the lot. kgf (Load)=N/mm (Spring Constant) × 0.101972 × F (Deflection)
E Always use within the allowable deflection Fmax.(mm). Load (kgf) = Load N × 0.101972
E The number of coils is a reference value. There may be some variations depending on the lot.
Please order after selecting part number and parameters according to the selection steps 1 to 3.
Ordering
Example Part Number (1Type · 2Coil O.D. D) - 3Free Length L
C-UBB4 - 10
How to search Search on MISUMI official website Step 1 Search on MISUMI official website Step 2 Select MISUMI economy series brand
on website By By
Type C-UBB Keyword coil spring
