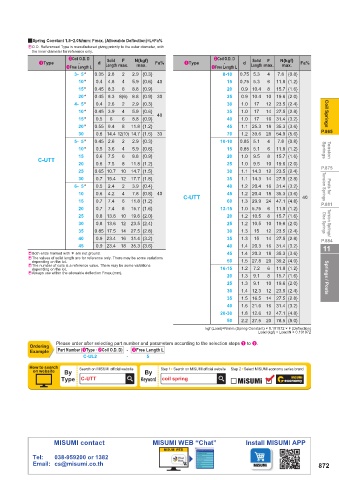

Page 877 - MISUMI Thailand Economy Series

QSpring Constant 1.5~2.0N/mm: Fmax. (Allowable Deflection)=L×Fa%
E O.D. Referenced Type is manufactured giving priority to the outer diameter, with
the inner diameter for reference only.
2Coil O.D. D Solid F N{kgf} 2Coil O.D. D Solid F N{kgf}
1Type - d Length max. max. Fa% 1Type - d Length max. max. Fa%
3Free Length L 3Free Length L
3- 5 ＊ 0.35 2.8 2 2.9 {0.3} 8-10 0.75 5.3 4 7.8 {0.8}
10 ＊ 0.4 4.8 4 5.9 {0.6} 40 15 0.75 5.3 6 11.8 {1.2}
15 ＊ 0.45 8.3 6 8.8 {0.9} 20 0.9 10.4 8 15.7 {1.6}
20 ＊ 0.45 8.3 8(6) 8.8 {0.9} 30 25 0.9 10.4 10 19.6 {2.0}
4- 5 ＊ 0.4 2.6 2 2.9 {0.3} 30 1.0 17 12 23.5 {2.4}
10 ＊ 0.45 3.9 4 5.9 {0.6} 35 1.0 17 14 27.5 {2.8} Coil Springs
15 ＊ 0.5 6 6 8.8 {0.9} 40 40 1.0 17 16 31.4 {3.2}
20 ＊ 0.55 9.4 8 11.8 {1.2} 45 1.1 25.3 18 35.3 {3.6}
30 0.6 14.4 12(10) 14.7 {1.5} 33 70 1.2 39.6 28 54.9 {5.6} P.865
5- 5 ＊ 0.45 2.6 2 2.9 {0.3} 10-10 0.85 5.1 4 7.8 {0.8}
10 ＊ 0.5 3.6 4 5.9 {0.6} 15 0.85 5.1 6 11.8 {1.2} Springs Tension
15 0.6 7.5 6 8.8 {0.9} 20 1.0 9.5 8 15.7 {1.6}
C-UTT
20 0.6 7.5 8 11.8 {1.2} 25 1.0 9.5 10 19.6 {2.0}
25 0.65 10.7 10 14.7 {1.5} 30 1.1 14.3 12 23.5 {2.4} P.875
30 0.7 15.4 12 17.7 {1.8} 35 1.1 14.3 14 27.5 {2.8}
6- 5 ＊ 0.5 2.4 2 3.9 {0.4} 40 1.2 20.4 16 31.4 {3.2} Tension Springs Posts for
10 0.6 4.2 4 7.8 {0.8} 40 C-UTT 45 1.2 20.4 18 35.3 {3.6}
15 0.7 7.4 6 11.8 {1.2} 60 1.3 29.9 24 47.1 {4.8} 40 P.881
20 0.7 7.4 8 15.7 {1.6} 13-15 1.0 5.75 6 11.8 {1.2}
25 0.8 13.6 10 19.6 {2.0} 20 1.2 10.5 8 15.7 {1.6}
30 0.8 13.6 12 23.5 {2.4} 25 1.2 10.5 10 19.6 {2.0} Disc Springs Torsion Springs/
35 0.85 17.5 14 27.5 {2.8} 30 1.3 15 12 23.5 {2.4}
40 0.9 23.4 16 31.4 {3.2} 35 1.3 15 14 27.5 {2.8} P.884
45 0.9 23.4 18 35.3 {3.6} 40 1.4 20.3 16 31.4 {3.2} 11
E Both ends marked with ＊ are not ground. 45 1.4 20.3 18 35.3 {3.6}
E The values of solid length are for reference only. There may be some variations
depending on the lot. 50 1.5 27.8 20 39.2 {4.0}
E The number of coils is a reference value. There may be some variations
depending on the lot. 16-15 1.2 7.2 6 11.8 {1.2}
EAlways use within the allowable deflection Fmax.(mm).
20 1.3 9.1 8 15.7 {1.6} Springs / Posts
25 1.3 9.1 10 19.6 {2.0}
30 1.4 12.3 12 23.5 {2.4}
35 1.5 16.5 14 27.5 {2.8}
40 1.6 21.6 16 31.4 {3.2}
20-30 1.8 12.6 12 47.1 {4.8}
50 2.2 27.5 20 78.5 {8.0}
kgf (Load)=N/mm (Spring Constant) × 0.101972 × F (Deflection)
Load (kgf) = Load N × 0.101972
Please order after selecting part number and parameters according to the selection steps 1 to 3.
Ordering
Example Part Number (1Type · 2Coil O.D. D) - 3Free Length L
C-UL2 - 5
How to search Search on MISUMI official website Step 1 Search on MISUMI official website Step 2 Select MISUMI economy series brand
on website By By
Type C-UTT Keyword coil spring

MISUMI contact MISUMI WEB “Chat” Install MISUMI APP
MISUMI WEB
Tel: 038-959200 or 1382
Email: cs@misumi.co.th 872
